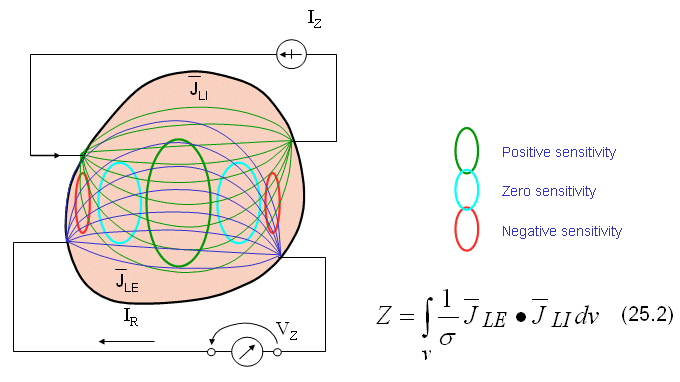

    Fig. 25.00. Lead fields for the current injection (green) and voltage measurement (blue) leads in four-lead impedance measurement.
    The sensitivity is positive in the region, where the two lead fields are parallel, zero where they are normal to each other and negative
    where they are in opposite direction.
